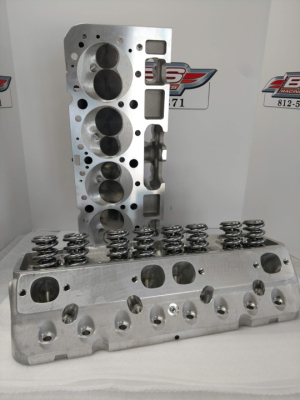

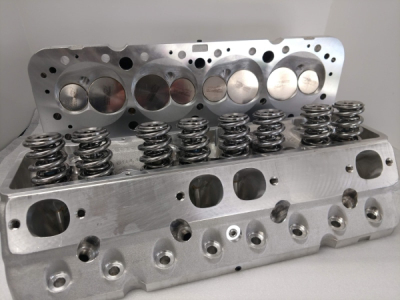

| BES / Victor NX 18° Heads: | Price |
|
This Head Was designed For Nitrous with Big intake and Huge exhaust Flow, This head comes Set up for water forced between the Siamese exhaust valves!! A Perfect head for BIG Nitrous inline valve rules!
We can customize these specifications and components to your application, just give us a call at 812-576-2371 |
$8,400 SOFT CHAMBERED, WITH WATER FITTINGS Call 812-576-2371 for details ask for Preston. ( Also available 2.200 intake NA version) |
| BES / Victor NX 18° Heads - Flow Numbers | ||
| Intake | Exhaust |
|
| .100 | 71 | 42 |
| .200 | 135 | 100 |
| .300 | 199 | 152 |
| .400 | 259 | 205 |
| .500 | 317 | 246 |
| .550 | 340 | 257 |
| .600 | 360 | 265 |
| .650 | 375 | 272 |
| .700 | 385 | 276 |
| .750 | 391 | 277 |
| .800 | 396 | 283 |
| .850 | 398 | 285 |
| .900 | 400 | 289 |
| .950 | 401 | 291 |
| 1.000 | 402 | 294 |
| Intake Valve Dia. | 2.180 | |
| Exhaust Valve Dia. | 1.625 | |
| Intake Port Volume | 285cc | |
| Exhaust | 108cc | |
| Combustion Chamber CC | 64cc Power Adder chamber | |
| BES does not build winning combinations based on flow numbers, but, everyone asks for them as a baseline, and that is why we are posting them. Flow numbers will vary from bench to bench. | ||
We have many programs for a huge selection of domestic cylinder heads. If you don't see what you are looking for on the website, give us a call at (812)-576-2371.
